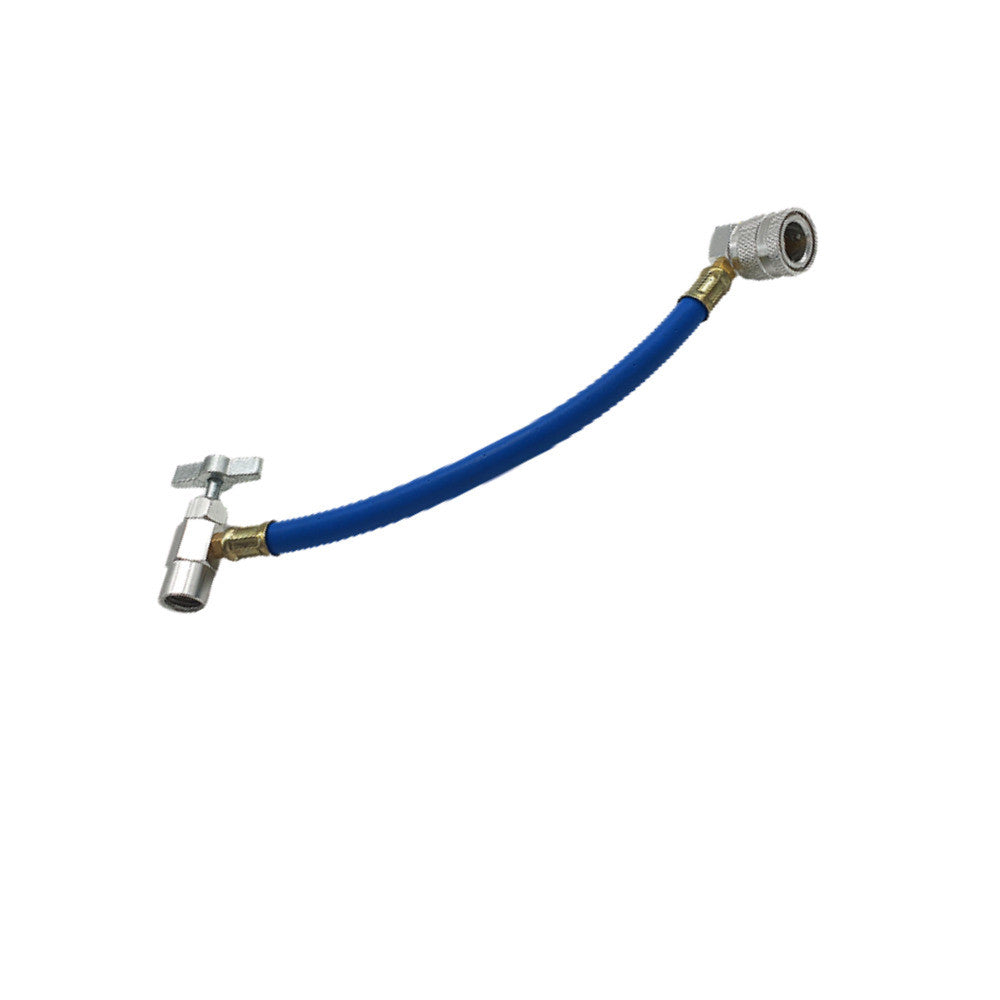

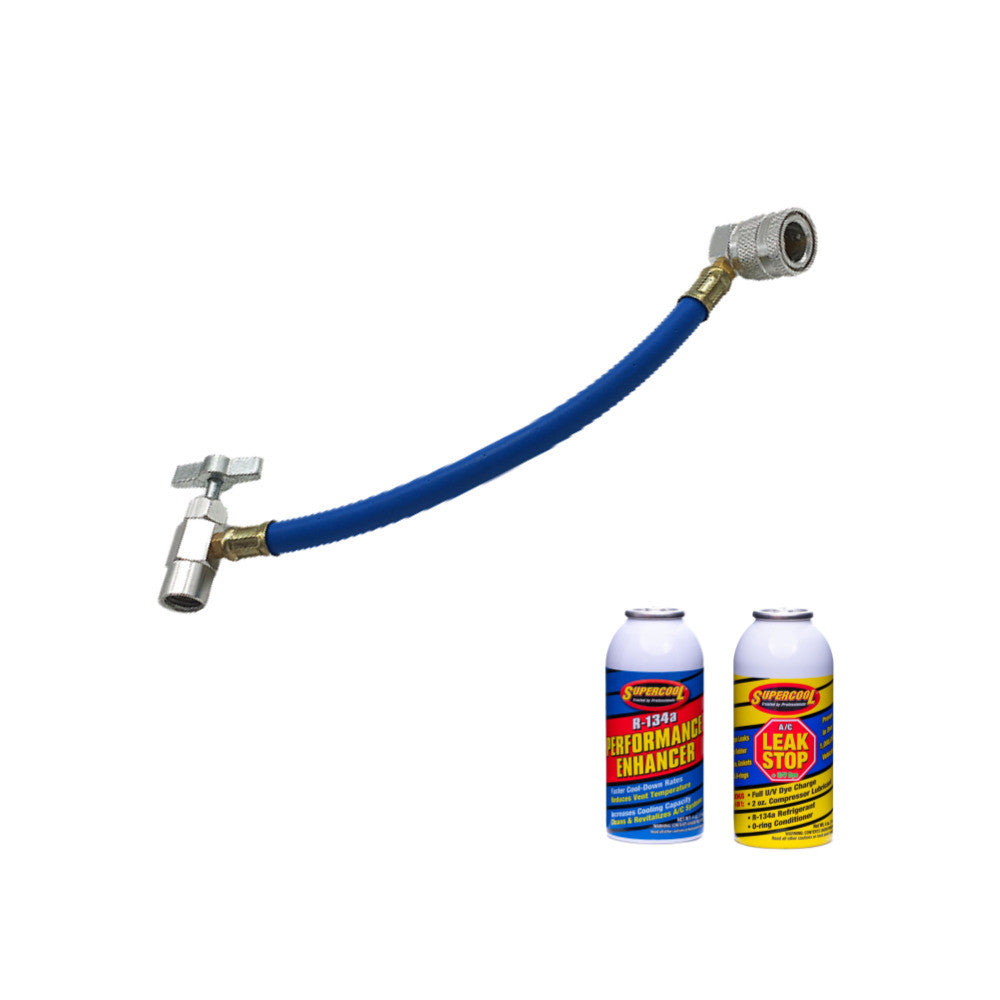

SUPERCOOL CAN TAP VALVE (R134A)

How to use

With the ignition off, connect the can and injector first before turning on the ignition.

When connecting, turn the injector valve to the left (counterclockwise) as far as possible to connect with the can.

Make sure to check the low-pressure line marked L on the thick pipe.

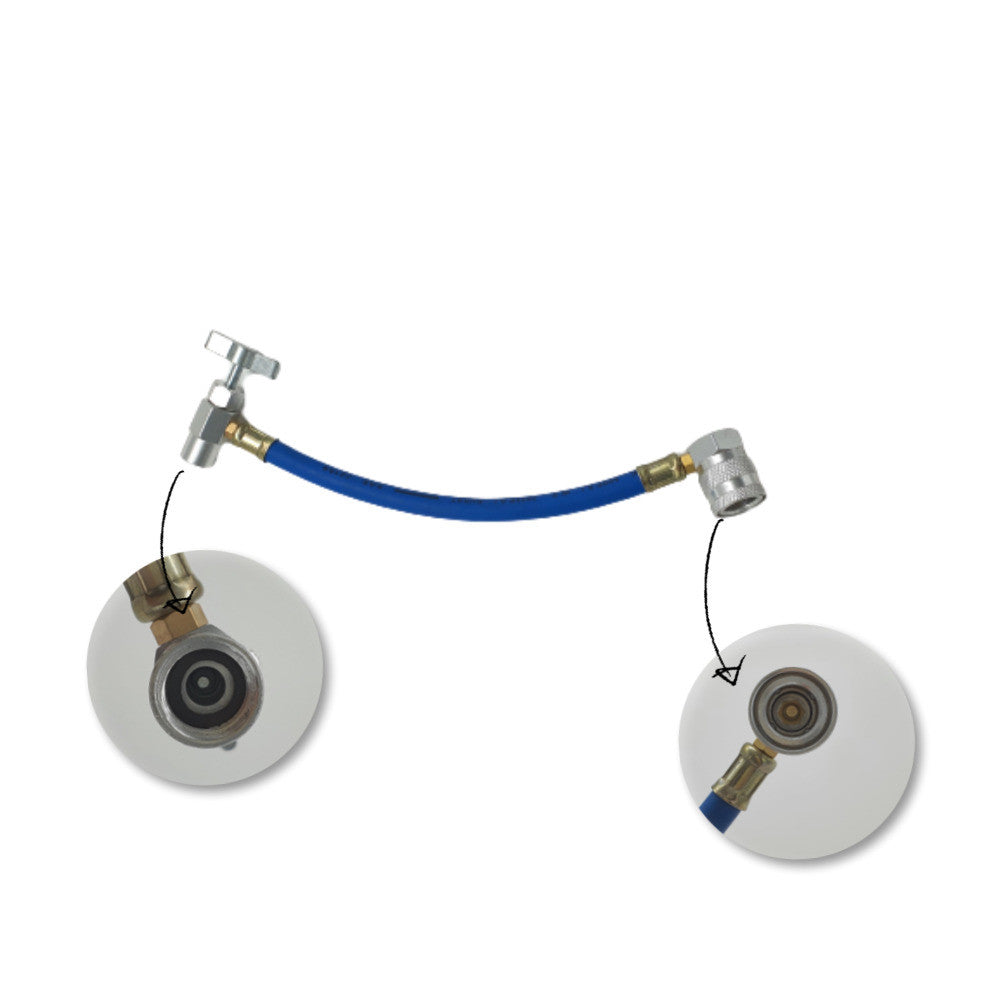

Pull back the injector hose coupler and connect it to the low-pressure line. When connecting the injector, tilt back the coupling at the end of the injector, push the adapter in, and push the coupling back to its original position to fix it.

(R134A refrigerant standard) By turning the injector valve clockwise, the pin pierces and presses the can, and the pin of the injector pierces the can and the solution is injected through the injector.

Turn on the engine and operate the air conditioner to the maximum to inject and place the can higher than the inlet when injecting.

Turn the injector valve clockwise to the right and press the pin into the can to make a connection.

A pin in the injector punctures the can and the solution is injected through the injector.

Turn on the engine, operate the air conditioner to the maximum, and place the can higher than the injection port when injecting.

After 5-10 minutes of infusion, shake the can to see if the infusion is complete.

Turn off the engine, close the injector valve counterclockwise to the left, and disassemble it.
